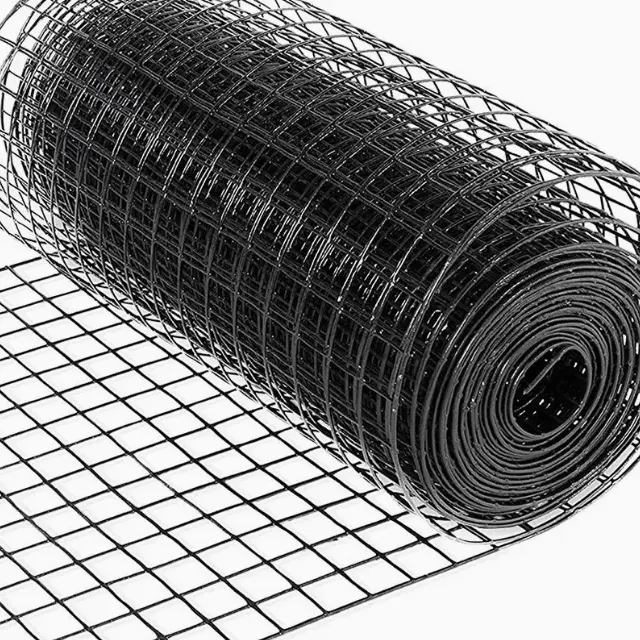

Welded wire mesh is made of high-quality low-carbon steel wire, welded together and then subjected to surface passivation and plasticizing treatments such as cold galvanizing (electro galvanizing), hot-dip galvanizing, and PVC coating. It features a flat surface, uniform mesh size, strong welds, good local machinability, stability, and excellent corrosion and rust resistance. Welded wire mesh is widely used in industry, agriculture, animal husbandry, construction, transportation, and mining. Applications include machine guards, livestock fences, flower and tree fences, window guards, walkway fences, poultry cages, egg baskets, and household/office food baskets, wastepaper baskets, and decorative items.
|
Standard welded wire mesh roll:30m/roll，width 0.5m-1.8m |
||
|
Opening size |
Wire diameter(BWG) |
|
|
inch |
mm |
|
|
1/4" x 1/4" |
6.4 x 6.4 |
22、23、24 |
|
3/8" x 3/8" |
10.6 x 10.6 |
19、20、21、22 |
|
1/2" x 1/2" |
12.7 x 12.7 |
16、17、18、19、20、21、22、23 |
|
5/8" x 5/8" |
16 x 16 |
18、19、20、21、 |
|
3/4" x 3/4" |
19.1 x 19.1 |
16、17、18、19、20、21 |
|
1" x 1/2" |
25.4 x 12.7 |
16、17、18、19、20、21 |
|
1-1/2" x 1-1/2" |
38 x 38 |
14、15、16、17、18、19 |
|
1" x 2" |
25.4 x 50.8 |
14、15、16 |
|
2" x 2" |
50.8 x 50.8 |
12、13、14、15、16 |
PVC COATED WELDE WIRE MESH ROLL:30m/roll，width 0.5m-1.2m
Opening size
Wire diameter(BWG)
inch
mm
1/2" x 1/2"
12.7 x 12.7
16、17、18、19、20、21
3/4" x 3/4"
19 x 19
16、17、18、19、20、21
1" x 1"
25.4 x 25.4
15、16、17、18、19、20
